Plastic Hot Cutting PVC Pelletizing Granulating Line for Pipe Fittings
Detalles del producto
| Condición: | Nuevo | Grado automático: | Automático |
|---|---|---|---|
| Capacidad: | 400kg/h | Plástico procesado: | Se aplicarán las siguientes medidas: |
| Diseño de tornillo: | Peluquero | Número de modelo: | Lb |
| Inversor: | TEJIDO | Garantía: | 2 años |
| Componentes eléctricos: | o Schnider | Método de embalaje: | Envases de madera y películas |
| El tiempo de entrega: | 45 días | ||
| Resaltar |
Pipe Fittings Pelletizing Granulating Line,Pelletizing Granulating Line for Pipe Fittings,Plastic Hot Cutting PVC Pelletizing Line |
||
Descripción del Producto
Plastic Hot Cutting PVC Pelletizing Granulating Line for Pipe Fittings
1.Application
With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC. It can be stopless in the course of production.
It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless steel
storage container and can run at high speed for a long time while extrude stably.
2.Features
1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity

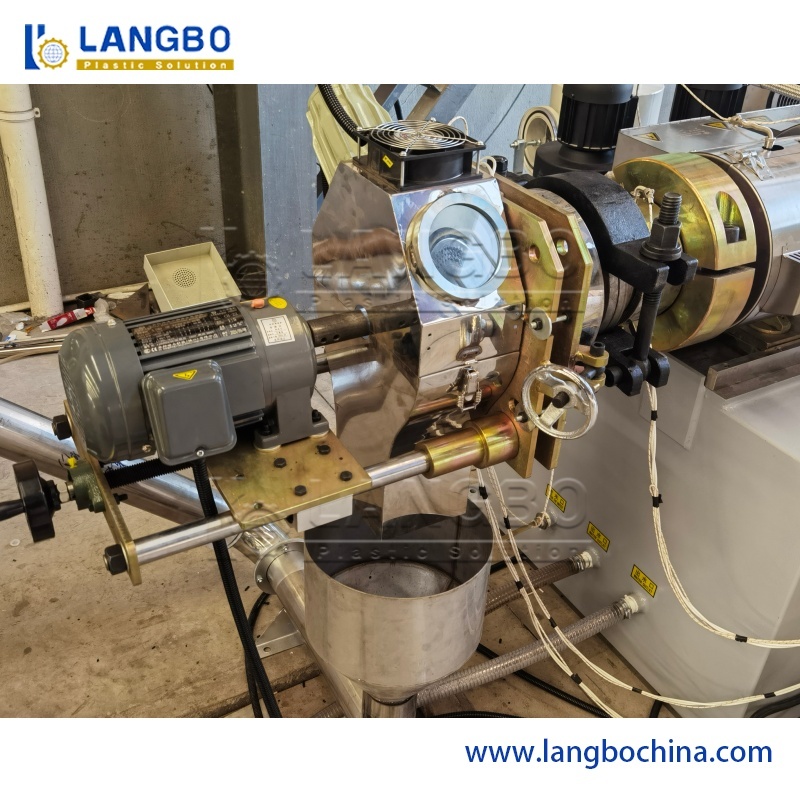

3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying
Process flow:
Raw material+ additive → Mixing → Conveying feeding → hopper feeding → Conical twin screw extruder → Hot face cutting → Cyclone separator → Vibration sieve → Blowing system → Storage hopper → Finished product packing
Technique parameter
| Model number | Screw diameter (mm) | Rotational speed of screw (rpm) | Pellets size(mm) | Main motor power (kw) | Heating power of Barrel (kw) | Production capacity (kg/h) | Central height of machine (mm) | Net weight | Overall size (mm) |
| SJSZ45 | 45/90 | 1-45 | 3-4mm | 15 | 9.6 | 70-80 | 1000 | 2800 | 3300*1200*2000 |
| SJSZ51 | 51/105 | 1-45.5 | 3-4mm | 22 | 11.5 | 80-120 | 1000 | 3000 | 3360*1290*2100 |
| SJSZ55 | 55/110 | 1-40 | 3-4mm | 22 | 18 | 150-180 | 1000 | 3500 | 3620*1350*2200 |
| SJSZ65 | 65/132 | 1-38 | 3-4mm | 37 | 24 | 250-300 | 1000 | 4000 | 4235*1520*2450 |
| SJSZ80 | 80/156 | 1-36.9 | 3-4mm | 55 | 36 | 320-450 | 1000 | 5000 | 4750*1550*2460 |
| SJSZ92 | 92/188 | 1-34.7 | 3-4mm | 110 | 88 | 650-800 | 1000 | 5500 | 6000*1600*2500 |
