Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line

1 set
MOQ
USD EUR
Precio
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Diámetro de la tubería: 75-250
El poder del extrusor: 55kw
Color: Personalizado
Pipa: Tubería doble
Materia prima: PVC PODIENTES Y ADITIVOS
Solicitud: Tubería de suministro de agua
Voltaje: 380V 50Hz o personalizado
Grado automático: Completo automáticamente
Diseño de tornillo: Tornillo gemelo y barril
Servicio postventa proporcionado: Ingenieros disponibles para maquinaria de servicio en el extranjero, instalación de campo, puesta en
Garantía: 18 meses
Inversor: TEJIDO
Color: Personalizable
Materia prima: Polvo de PVC
Motor: Marca Siemens
Contactor: Siemens o Schnider
Tornillo y cañón: Extrusor de tornillo gemelo cónico
Diámetro de tornillo: 65/132
Aplicación de tubería: Suministro de agua
Paquetes: Cajas de películas
Pago: T/T, L/C, Western Union
El tiempo de entrega: 60 días
Información básica
Lugar de origen: Zhangjiagang, Jiangsu
Nombre de la marca: LB
Certificación: CE ISO9001
Número de modelo: LB-32
Pago y Envío Términos
Detalles de empaquetado: Paquete normal
Tiempo de entrega: 30 días hábiles
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 15 conjuntos por mes
Descripción de producto

Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line

Short description
The PVC profile production line is widely used for producing various PVC profiles, such as PVC window&door profile, PVC ceiling panel, PVC trunking. With drawing sections of the PVC profile, tailed solutions and mould will be made.

Processing Process
The process flow of this line is PVC powder + additive - mixing-material feeder-twin screw extruder- mould and calibrator-vacuum forming table-haul-off machine-cutting machine-discharge rack.

This PVC profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.


Application
Suitable for supermarkets,convenience stores,chain stores,wholesale markets for fruit and food placement labels.The products have many varieties,bright transparency not easy to break,durable and other characteristics.

Specifications

Model
 LB180 LB240 LB300 LB600
Max width of products(mm)
 180 240 300 600
Screw Model
SJ55/110
SJ65/132
SJ65/132
SJ80/156
Motor power
22KW
37KW
 37KW
55KW
Cooling Water(m3/h)
 5 7 7 10
Compressor(m3/h)
 0.2 0.3 0.3 0.4
Total length(m)
 18m 22m 22m 25m


Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 0

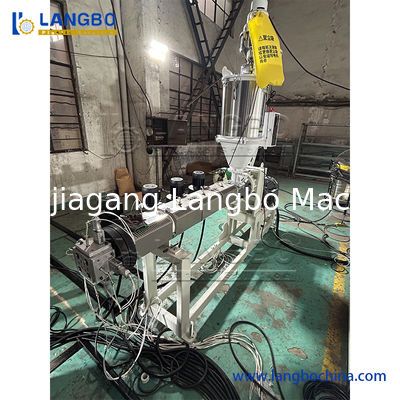

Single screw extruder machine:The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 1

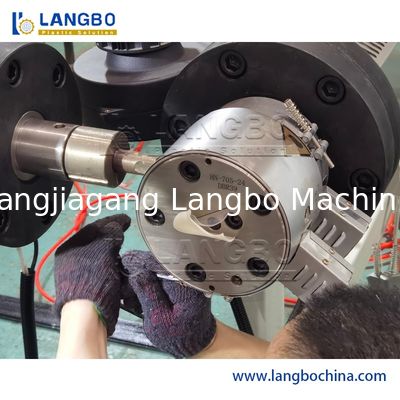

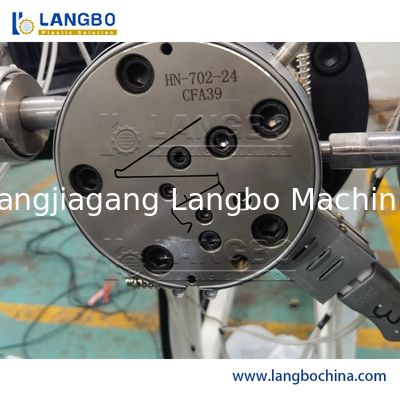

Mould:The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.
It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 2

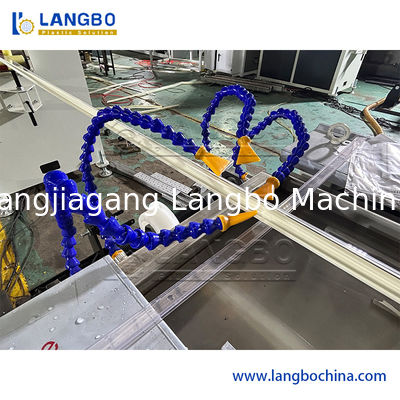

Calibration table:The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 3
Haul-off Unit:The force distribution along each belts has sufficient hauling force. We offer good-quality bellt for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 4
Cutter unit:Two kinds of cutting way including swarfless and saw cutting are available for customization.
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 5
Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 6Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 7Supermarket Shelves Plastic Label Extrusion Making Machine Plastic Price Tag Strip Production Line 8
