Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production

1 juego
MOQ
Negotiable（USD EUR）
Precio
Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production
Caracteristicas Galería Descripción de producto Calificaciones y Reseñas Pida una cita
Caracteristicas
Especificaciones
TIPO DE ENCHUFE: Tipo U & R
Diámetro de la tubería: 16 ~ 630 mm
Potencia del motor principal: 18,5-90kW
Peso de la máquina: 500 kg - 1500 kg
Modelo extrusor: SJSZ63/132
Rango de diámetro de Belling: 20 mm - 630 mm
Sistema de control: Control PLC con pantalla táctil
Modo de operación: Automático / Semiautomático
Información básica
Lugar de origen: Zhangjiagang
Nombre de la marca: LB
Certificación: CE ISO
Número de modelo: libra
Pago y Envío Términos
Detalles de empaquetado: Paquete normal
Tiempo de entrega: 45 DÍAS LABORABLES
Condiciones de pago: LC, T/T
Capacidad de la fuente: 15 juegos por mes
Descripción de producto

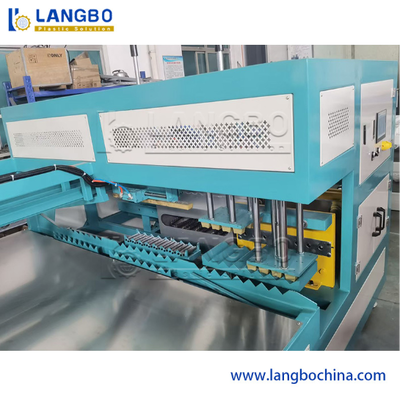

Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production
Plastic Pipe AUTO Belling Machine

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor-controlled bracket height adjustment for easy operation. This system is configured with a material-receiving pulling device and related process interfaces that can work both in conjunction with the main machine or operate independently.

  • Horizontal pipe movement ensures stable, accurate actions without damaging pipes
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace includes central heating furnace core
  • Expansion tube head shaping method provides precise nozzle dimensions
  • Control panel features conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Convenient tube expansion method selection with strong craft adaptability
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Out Diameter) Φ 20-630mm
Belling Type R type & U type
Used Oil Label No. 40/hydraulic oil
Quantity of Heater 2
Highest Temperature in Heater 280°C
Gas Pressure 0.6~0.8Mpa
Water Pressure 0.2~0.3Mpa
Pipe Length 3-6m
Center Height 900mm± 50mm
Machine Dimensions 8615x3125x2500mm
Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 0 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 1 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 2 Pipe Belling Machine | Stable Forming Quick Mold Change High Efficiency Production 3
Our Service Commitment

After machine completion and before delivery, we will notify customers to check the trial run. Upon machine arrival at the customer's factory, we will send engineers to install the equipment, perform debugging, and provide comprehensive worker training as needed.

Company Introduction

ZHANGJIAGANG LANGBO MACHINERY CO., LTD is located in Zhangjiagang city, conveniently accessible within 2 hours from Shanghai and 40 minutes from WUXI airport.

Our company specializes in supplying various plastic machinery including plastic washing recycling machines, plastic granulating machines, plastic pipe extrusion machines, and related auxiliary equipment. With over 20 years of experience and continuous development in this field, we have accumulated extensive expertise and professional technology in providing comprehensive solutions from technical design to extrusion manufacturing.

We are committed to offering customers high-quality machines at competitive prices with responsive after-sales service available at any time.
